60's Ludwig Snare Stand

Loading...

Any suggestions?

Posted on 10 years ago
#11
Posts: 6524 Threads: 37
Loading...

The slice in the tube allows for the squeeze of the clamp to hold tight from up and down movement. The tiny hole is where a tiny screw with an allen key that goes inside to hold the head on and stop twist movement.

That`s what it does on mine.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 10 years ago
#12
Posts: 6524 Threads: 37
Loading...

The screw is headless and hollow and the allen key goes inside to tighten or loosen it.

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 10 years ago
#13
Posts: 6524 Threads: 37
Loading...

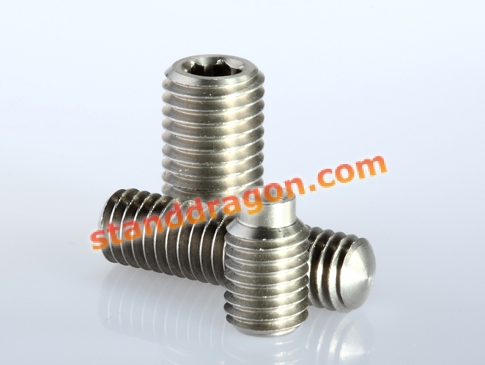

They`re called grub screws and look like this. yours would be like the tiny one.

1 attachment
It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 10 years ago
#14
Loading...

I think longjohn is trying to get you to find out what part of the stand is slipping to allow it to rotate.

If it's the rod in your photos, then the sleeve needs to grip it more tightly. Is the screw tightened all the way in? If so, then the shim is the next thing to try.

Be aware that lubricating clamp screws actually allows them to hold more tightly. If yours is dried out, it might not be able to tighten enough to clamp the post in place.

-Erik
______
Early '70's Slingerland New Rock #50 in blue agate (20-16-13-12)
Late '50's WFL Swingster/Barrett Deems in black/gold Duco
'70's Slingerland Gene Krupa Sound King COB
early '70's Ludwig Acrolite
'80's Ludwig Rocker II 6 1/2" snare
Rogers Supreme Big "R" hi hat

Posted on 10 years ago
#15
Loading...

From OddBall

They`re called grub screws and look like this. yours would be like the tiny one.

So one of these screws should go in the hole inside the tube? Does it just screw all the way in?

Posted on 10 years ago
#16
Loading...

From Poetman

There are these holes as wellAm I missing a part that connects to these holes?

Are these two holes empty?

There should be two drift pins perpendicular to each other, and I bet you they've gone AWOL. The basket gets wiggled and shimmied back and forth and the pins eventually pinch enough to fall out. I've got 3 or 4 stands with just this problem in my basement.

Posted on 10 years ago
#17
Loading...

So am I supposed to cut a slit in the inner tube or buy a screw for this hole?

Posted on 10 years ago
#18
Posts: 3467 Threads: 116
Loading...

I think you should take it to the local music store for their advice..

Cheers

John

'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 10 years ago
#19
Loading...

From longjohn

I think you should take it to the local music store for their advice..CheersJohn

LOL--I wish I lived in that world! I have Guitar Center and some 20 something music school graduate who doesn't low anything about drums made before 1980.

Posted on 10 years ago
