Ludwig Find

Posts: 1525 Threads: 127

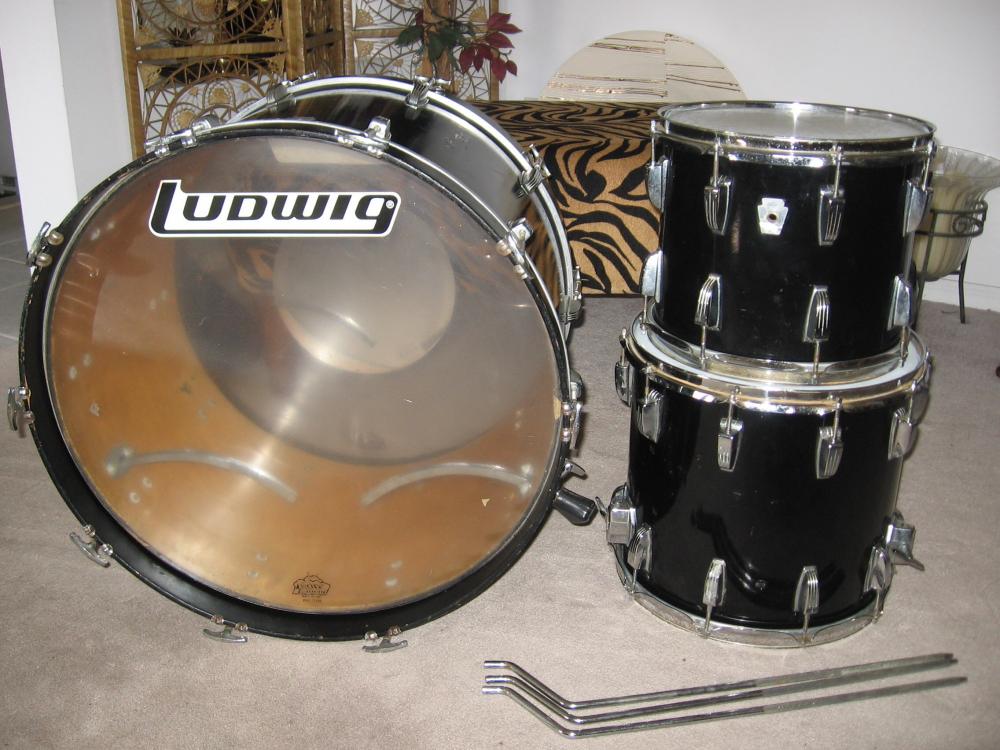

I found these Ludwig's on CL and bought them. 16"x24" Bass drum drilled for double Spurs. Only has the front Spurs and spur mounts. The 10"x12" tom is a 8 lug tom with the large lugs. The 14"x14" is a ten lugger. I have never seen this before. There are no extra holes in the drums. No Tom mount on the 10"x12" and a virgin bass drum. Which I like actually. The bass and tom have the large keystone badges. No badge on the floor tom. Also I think it is odd the vent hole is on the bottom between the lugs. Someone painted them black. I don't know if they were wrapped before ?

They are the 6 ply Maple. I presume Monroe. The shells are in great condition. I bought them for the 14"x14" floor tom. Anyone ever seen or have a 10 lug 14"x14" ? Definitely factory from what I can tell. Bass drum hoops have no inlay groove. Missing one Lug. Lugs and rims will clean up nicely. I want to strip that black paint off. I was reading a thread here recently about that. If someone could tell me the easiest paint stripper to use. Never done that before. This must be pieces from a larger set. Odd sizes for a set, but will sound just fine. I may rewrap the 14"x14" to match my Silver Sparkle Ludwig's. Anyone know anything about these ? I am pretty good on the Ludwig stuff but have never seen this many lugs on these size toms. Bass serial #3095867. 12" tom #3118664. Floor ? Would make a cool little set. They sound great.

1 attachment
105.5 kB
Posted on 9 years ago
#1
Posts: 2148 Threads: 177

From vibes

I found these Ludwig's on CL and bought them. 16"x24" Bass drum drilled for double Spurs. Only has the front Spurs and spur mounts. The 10"x12" tom is a 8 lug tom with the large lugs. The 14"x14" is a ten lugger. I have never seen this before. There are no extra holes in the drums. No Tom mount on the 10"x12" and a virgin bass drum. Which I like actually. The bass and tom have the large keystone badges. No badge on the floor tom. Also I think it is odd the vent hole is on the bottom between the lugs. Someone painted them black. I don't know if they were wrapped before ? They are the 6 ply Maple. I presume Monroe. The shells are in great condition. I bought them for the 14"x14" floor tom. Anyone ever seen or have a 10 lug 14"x14" ? Definitely factory from what I can tell. Bass drum hoops have no inlay groove. Missing one Lug. Lugs and rims will clean up nicely. I want to strip that black paint off. I was reading a thread here recently about that. If someone could tell me the easiest paint stripper to use. Never done that before. This must be pieces from a larger set. Odd sizes for a set, but will sound just fine. I may rewrap the 14"x14" to match my Silver Sparkle Ludwig's. Anyone know anything about these ? I am pretty good on the Ludwig stuff but have never seen this many lugs on these size toms. Bass serial #3095867. 12" tom #3118664. Floor ? Would make a cool little set. That sound great.

Nice find..

The only idea I can come up with regarding the 10lugger 14x14...

Would be if it might have started off as a Marching Tom..or snare even,?

Take a good look inside to see plugs or something out of place.?

Bop iT / Til U Drop iT.

ROGER's
1964 Cleveland,.18/14/12 in WMP
1966 Cleveland, 20/14/12 O'natural.
Fullerton,...20/16/13/12 Silver Glass

WFL
1957 B/R Super Classics In WMP

Snares..
Wood & COB Powertones,
Wood & COB Dynasonics,
57 Jazz Festival

Zildjian avedis cymbals.
40s/60s era.
Posted on 9 years ago
#2
Posts: 1525 Threads: 127

No, absolutely nothing. No extra holes. Only drilled for the lugs and leg mounts. Really nice 6 ply Maple. Heavy little drum with that thick wood and all that hardware. What gets me is the vent placement. Don't know if you can see it good in the pic because they painted over the eyelet. It's between the middle lugs in the pic on the bottom. The eyelet has been removed and replaced. Not sure about the other two.

Posted on 9 years ago
#3
Posts: 1651 Threads: 215

I've seen 10 lug 14" drums though not often . I actually have a pair of Mapex die cast hoops, 10 lug that were from a tom. Far as the vent hole, perhaps that tom didn't come with floor tom legs. The 12" has the vent hole in the same place, only at the top. Maybe the 14" was a hanging and someone added the other two brackets for legs and removed the badge as it would have been on the bottom.

18 Kits & 40+ snares..
Not a Guru, just addicted to drums

- Jay
Posted on 9 years ago
#4
Posts: 1525 Threads: 127

I have never had a 12" 8 lug tom either. Must have been a special order.

Posted on 9 years ago
#5
Posts: 1651 Threads: 215

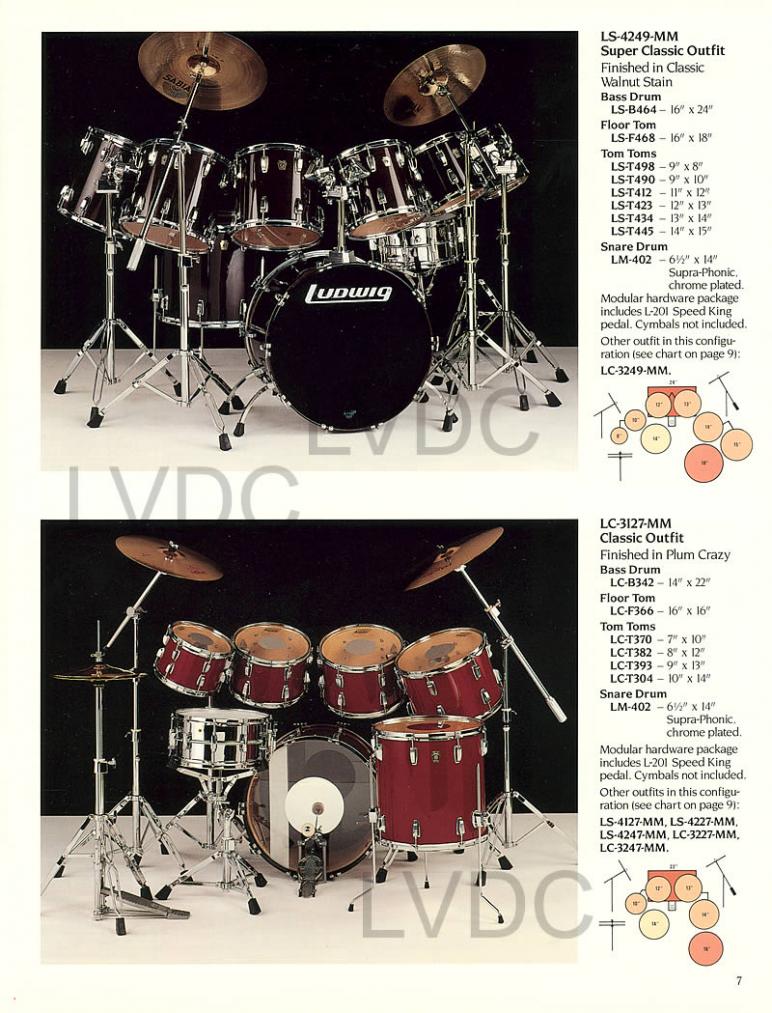

Eric Carr's kit had the same amount of lugs. Think it was the norm for the line of drums.

1 attachment
133.7 kB
18 Kits & 40+ snares..
Not a Guru, just addicted to drums

- Jay
Posted on 9 years ago
#6
Posts: 727 Threads: 96

Yep! Those are 80's Monroe drums, Maple Classics I believe. Heavy drums, had a set back in the early 90's.

Drum Kits
1965 Ludwig Clubdate Oyster Blue
1966 Ludwig Clubdate Oyster Black
1969 Ludwig BB Blue Oyster Keystone Clubdate
1971 Ludwig BB Black Oyster
Early 60's Camco Oaklawns Champagne Sparkle
Posted on 9 years ago
#7
Posts: 2010 Threads: 19

There was a period in the late 80s and early 90s when Ludwig "power" toms had more lugs than was typical before or since. I'd guess a ten lug 14 would be from that period.

Posted on 9 years ago
#8
Posts: 1525 Threads: 127

Very well could have been standard for that set. But the 12" has no tom mount at all. Virgin tom and bass. I'm still not sure of the year these were made. 6 ply so had to be late 70's early 80's. I may keep the toms and sell the Bass drum if anyone is interested.

Posted on 9 years ago
#9
Posts: 1651 Threads: 215

They are from the 1980's, mid to late. The 12" could have been special ordered with no mount, but aside that it's standard for the time. A lot of guys were not big fans of those modular mounts ( they are a tad gaudy ) The virgin bass drum I believe was standard issue. The catalog photo I posted, the bottom kit has a virgin bass.

18 Kits & 40+ snares..
Not a Guru, just addicted to drums

- Jay
Posted on 9 years ago
