Speed King Q.

Posts: 6524 Threads: 37

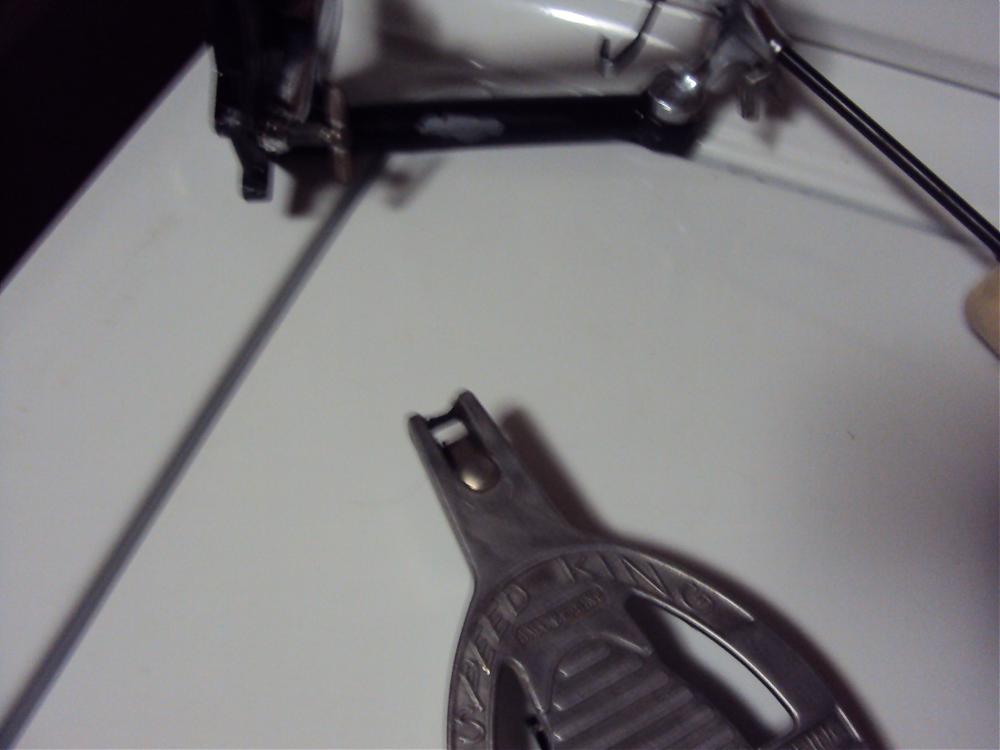

My last mystery, it involves a rivet on the top of the footboard, it goes through the cast footboard but holds onto nothing,....I was clean`n it and wondered why they would put a rivet into a hole that does nothing ?? It`s just a rivet in a hole !!

2 attachments
43.3 kB
43.4 kB
It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#1
Posts: 10714 Threads: 579

it is there to hold the retaining clip in place .IF It wasn't there the pedal wouldn't be able to hold onto the footboard!

Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 14 years ago
#2
Posts: 6524 Threads: 37

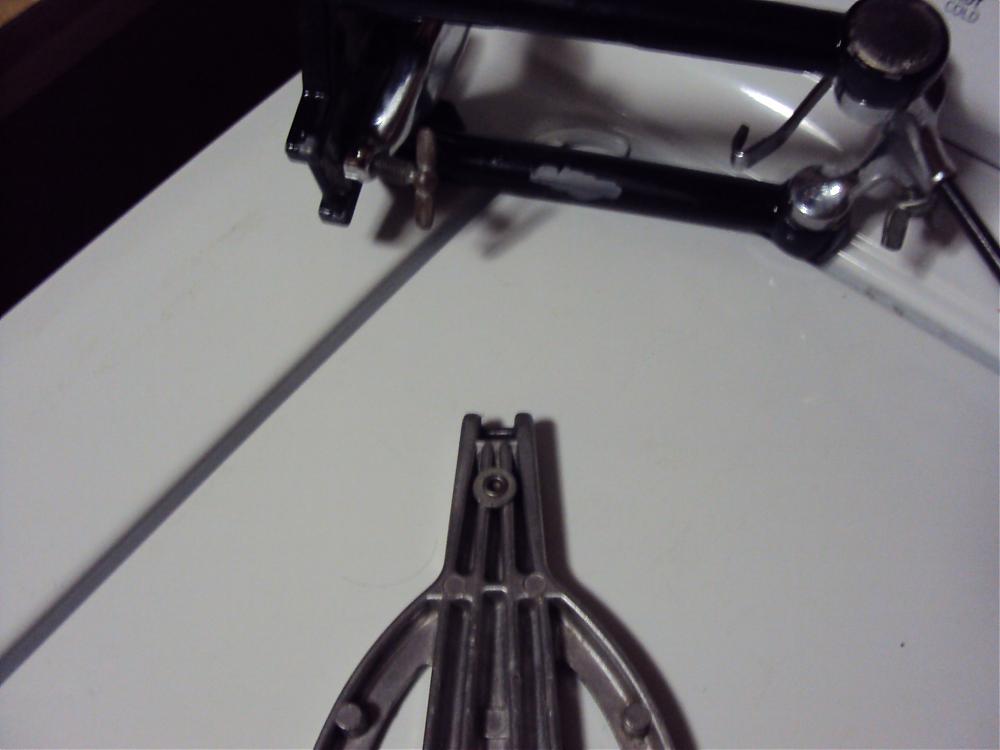

No, no ...not that one,...the big shiny one at the begin`n of the grove,...look at the bottom shot,..there is a cast hole it goes through. The hook don`t even touch that !!

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#3
Posts: 10714 Threads: 579

From OddBall

No, no ...not that one,...the big shiny one at the begin`n of the grove,...look at the bottom shot,..there is a cast hole it goes through. The hook don`t even touch that !!

were talking about the same thing without it your pedal every up stroke the clip would disengage without it, and disconnect from the foot board, the three speed kings I'm showing the last two are like yours the first one is a very early speed king it doesn't have the rivet in it!

Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 14 years ago
#4
Posts: 4009 Threads: 209

That rivet is supposed to be retaining a metal spring clip that is bent in such a way to apply pressure to the bottom edge of the footboard link when it is attached for playing mode. Your pedal seems to be missing that spring clip. The clip helps keep the link in place and not allow it to detach from the footboard while playing. Without it, you risk the link coming undone from the footboard. Unfotunately it is not a part that Ludwig sold as a service part. The only way you could get it from Ludwig was to purchase a footboard assembly.

Posted on 14 years ago
#5
Posts: 6524 Threads: 37

You guys are amazeing,...Thank you,..this site is like priceless with guys like you two !! I`m glad I decided to join !!

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#6
Posts: 10714 Threads: 579

From OddBall

You guys are amazeing,...Thank you,..this site is like priceless with guys like you two !! I`m glad I decided to join !!

that's what this forum is all about glad to be of help.

Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 14 years ago
#7
Posts: 6524 Threads: 37

This is definitely the most proffessional drum forum on the net. !!

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#8
Posts: 6524 Threads: 37

Vintagemore,

Mine has the same keys as the one in the photo that is in the middle, it also has the short cast face`n the drum,...Dose this date it, and are all the parts correct ?? If yo need more photos`, I can do that !!

It`s a drum,.....Hit It !!

.....76/#XK9207 Phonic Sound Machine D454/D-505 snares !i
Posted on 14 years ago
#9
Posts: 10714 Threads: 579

From OddBall

Vintagemore, Mine has the same keys as the one in the photo that is in the middle, it also has the short cast face`n the drum,...Dose this date it, and are all the parts correct ?? If yo need more photos`, I can do that !!

If yours is like the middle Wfl speed king then it's middle 50's the last or 3rd wfl speed king is late 50's

Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 14 years ago
