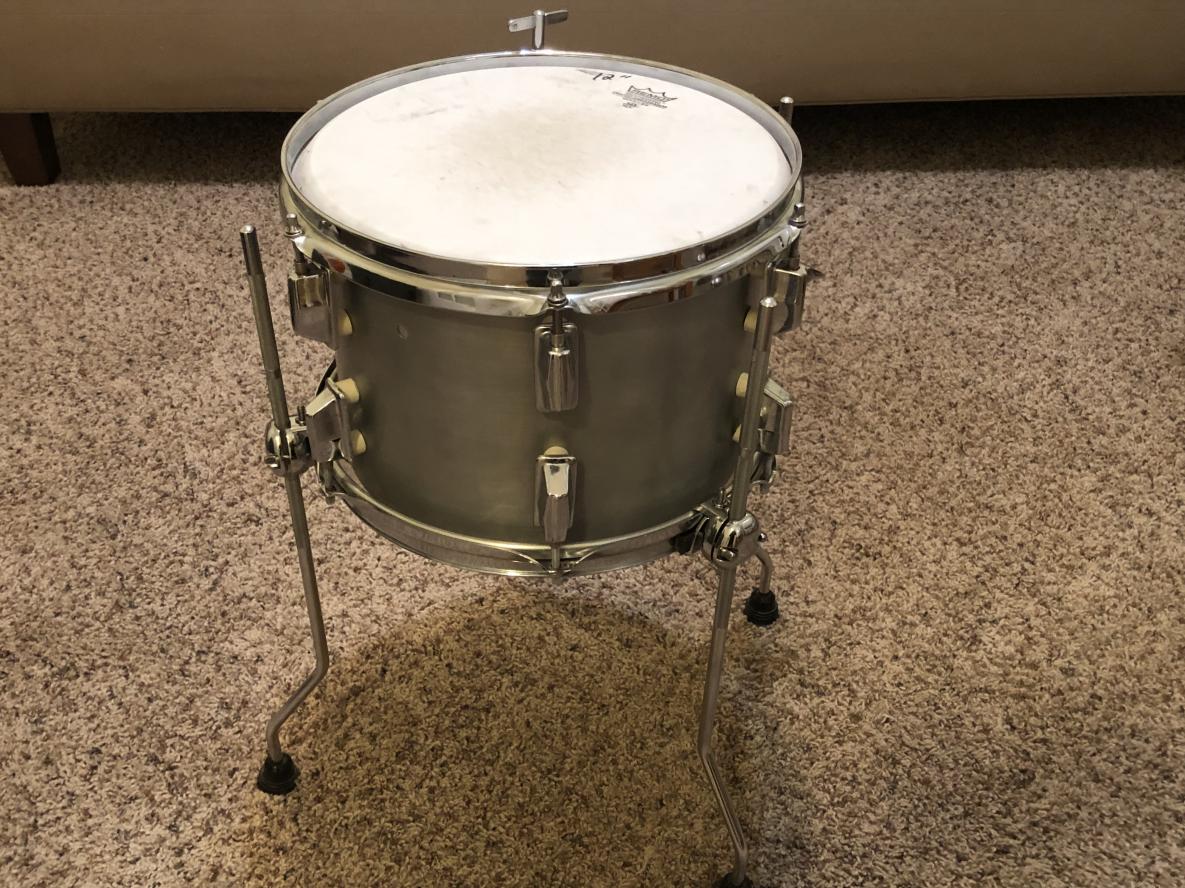

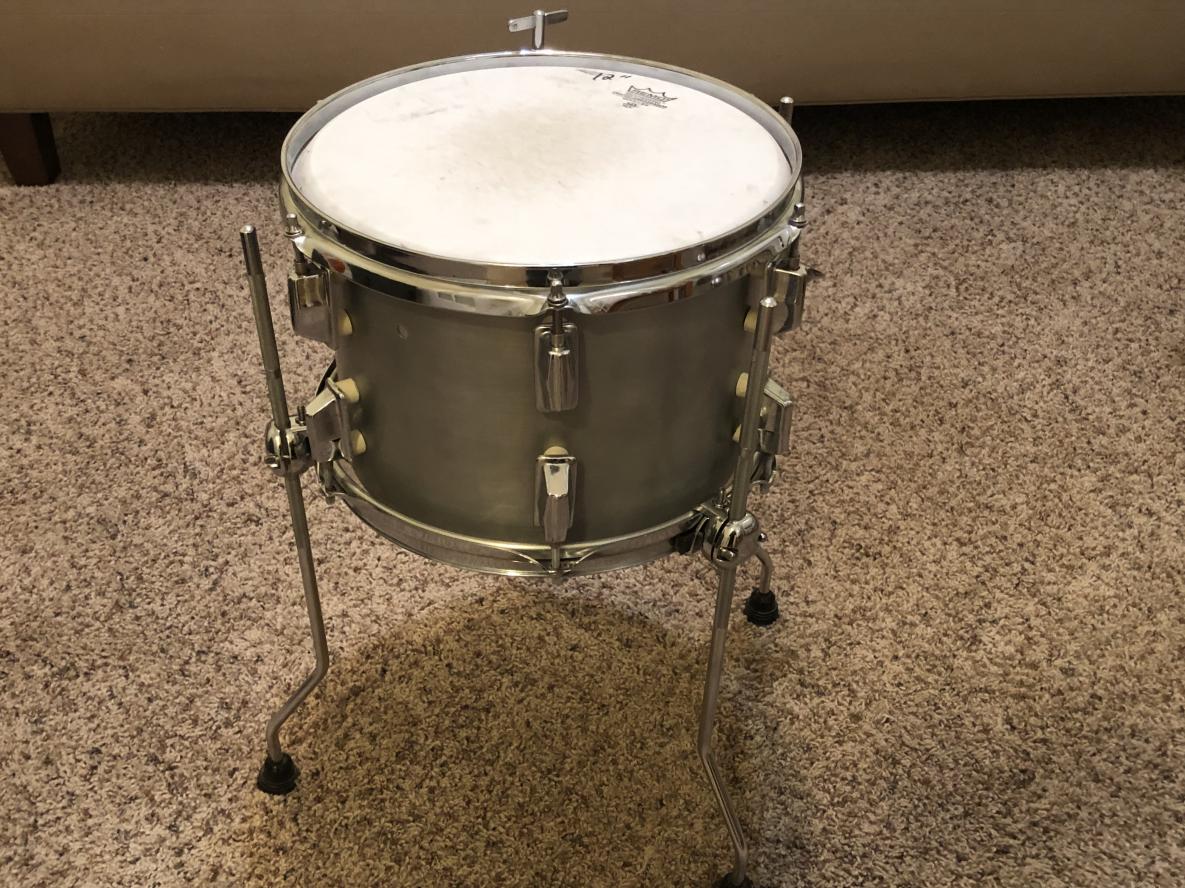

12" FT made from cook pan + leg hack Last viewed: 47 minutes ago

Loading...

Aluminum alloy pot from thrift store.

Ran out of Dunnette rim clips, so I tried a hack.

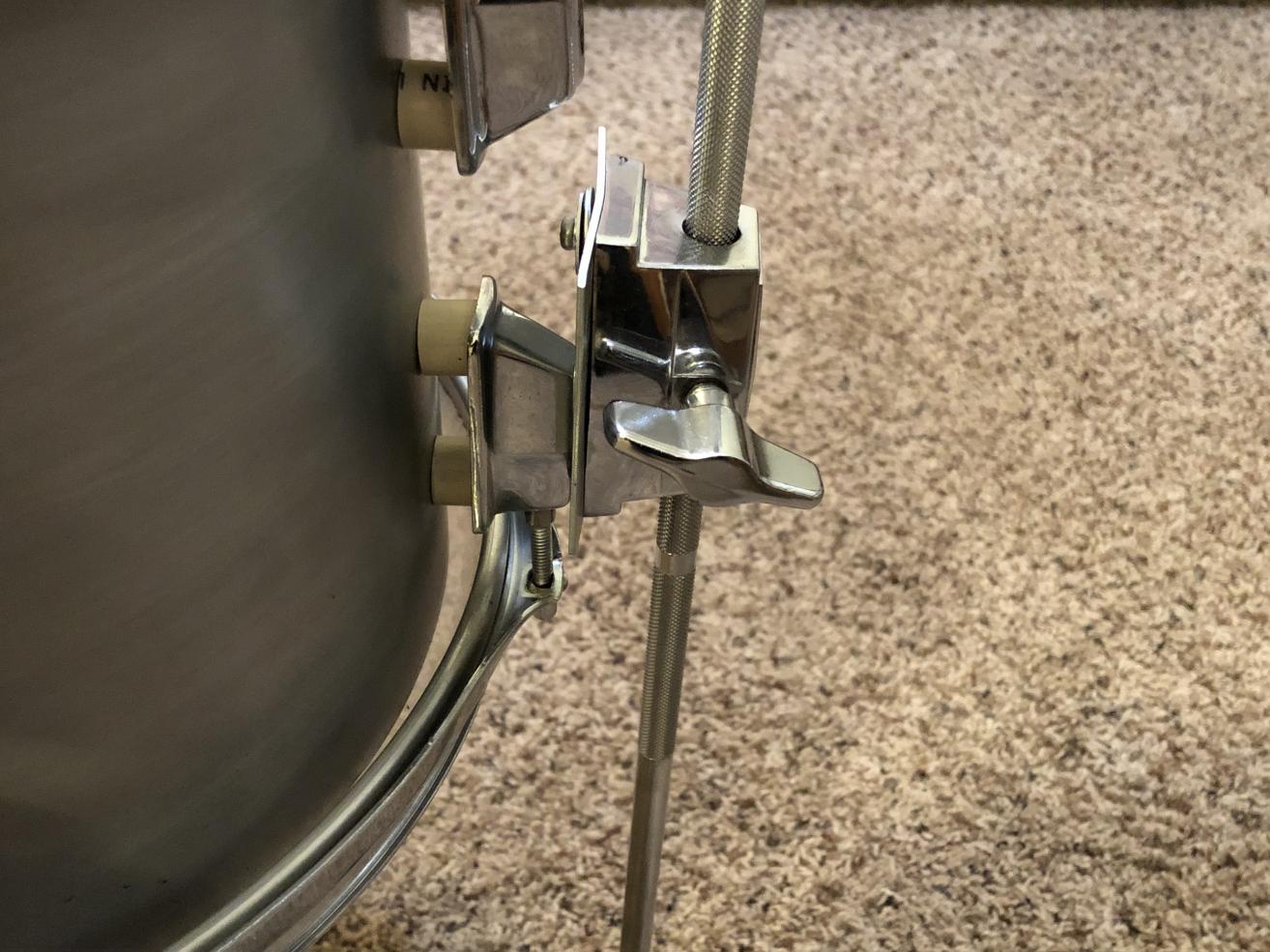

Mounted FT leg bracket to the lug.

Drilled 2 holes through flattened face lug.

Working.

Right....is a 12" worthy of being called a floor tom?

Well...if the bass Drum is 16" and the snare is 10"....then I guess it qualifies.

Maybe.......

2 attachments
BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 1 year ago
#1
Loading...

Amazing! Now that is what I call "thinking outside the box"! Excellent!

Brian

Just a drummer who loves all things about vintage drums! Nothing more, nothing less.
Posted on 1 year ago
#2
Loading...

From salty 1322

Amazing! Now that is what I call "thinking outside the box"! Excellent! Brian

Thinking outside the box?? OR......... Just thinking outside of the cylinder?

BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 1 year ago
#3
Loading...

From green glass drum

Thinking outside the box?? OR......... Just thinking outside of the cylinder?

Hmmm...you're right! I have a couple of old whisky barrels buried somewhere in the basement. I wonder...

Brian

Just a drummer who loves all things about vintage drums! Nothing more, nothing less.
Posted on 1 year ago
#4
Loading...

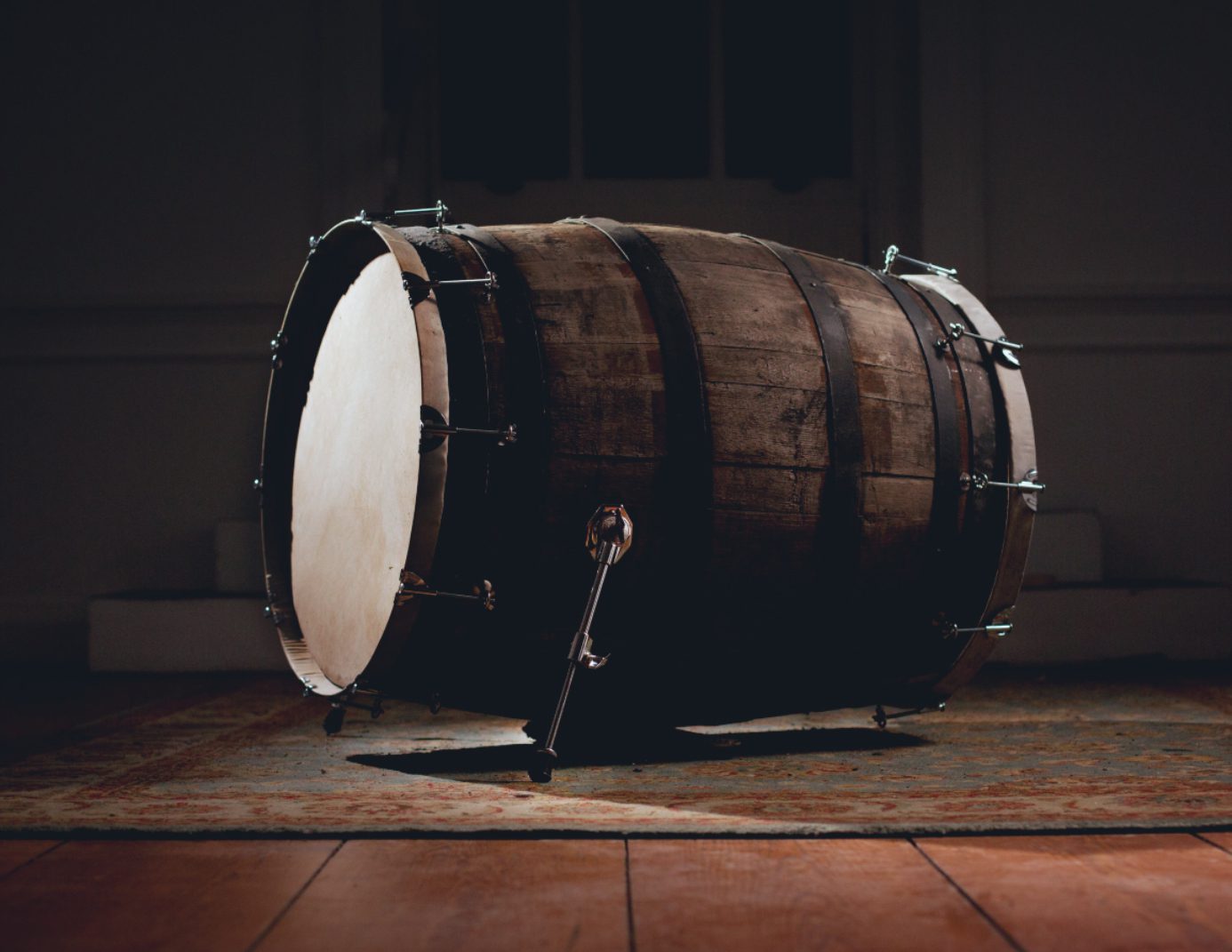

There is a guy out there who has made some whisky barrel bass drums.

Don't empty them all the way..........have some for after the show.

BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 1 year ago
#5
Loading...

ski & barrels of ski.

BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 1 year ago
#6
Loading...

New shell diameter/bearing edge Method?????

This pot is 11 and 3/8ths in OD-diameter. I thought it was close enough to 12.

NOPE.

When the head went on, I could see there was too much space between shell and head rim.

So...I looked for a metal that I could bend around the shell to make the diameter larger at the edge. Again......why do I do this????.....Because I learn something each time.

Soooo No on finding the metal.

Then I went to GC to get a EC2 12" head for deep tone. maybe.

and looked at the drum head.

And there it was.......Use an old head rim and cut it down and attach it to the shell.

But how to attach?

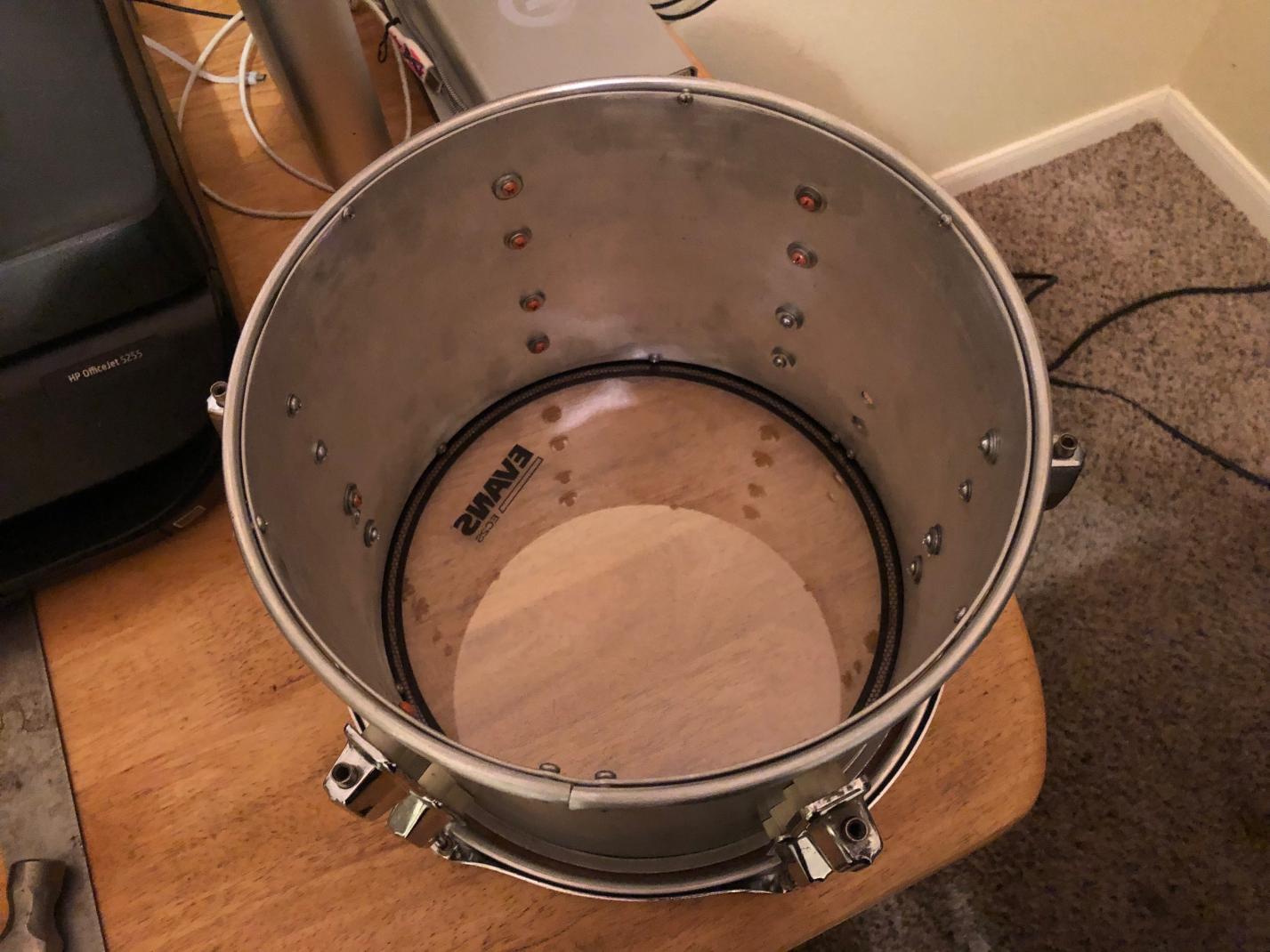

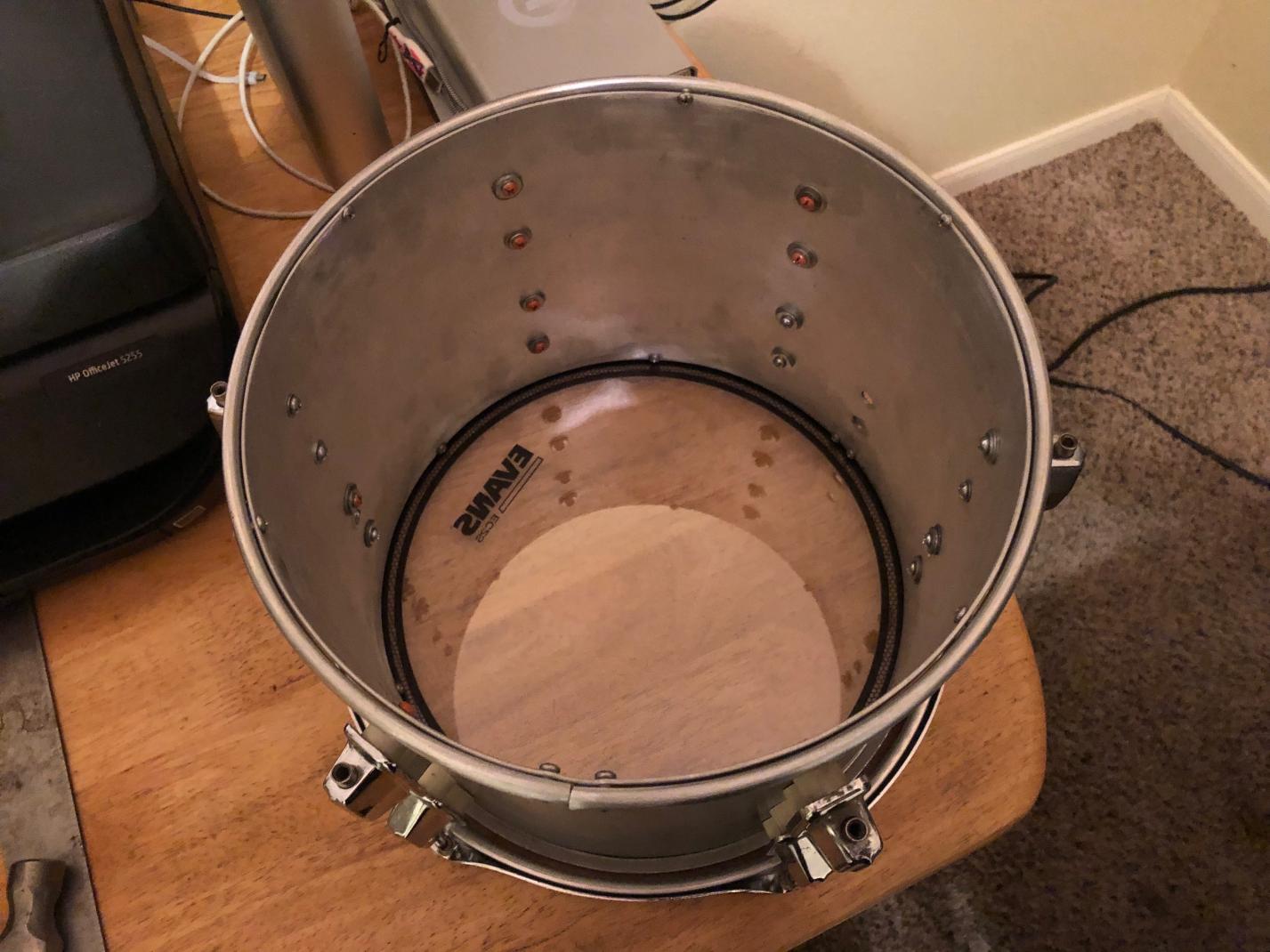

First set it up higher than the existing shell. (New bearing Edge is the Head Rim)

Clamp it, measure it up from flat table and drill a hole from the outside through the head rim and the shell. Tap it with 6/32 tap and put a screw in from the inside.

YES threads will go both ways.

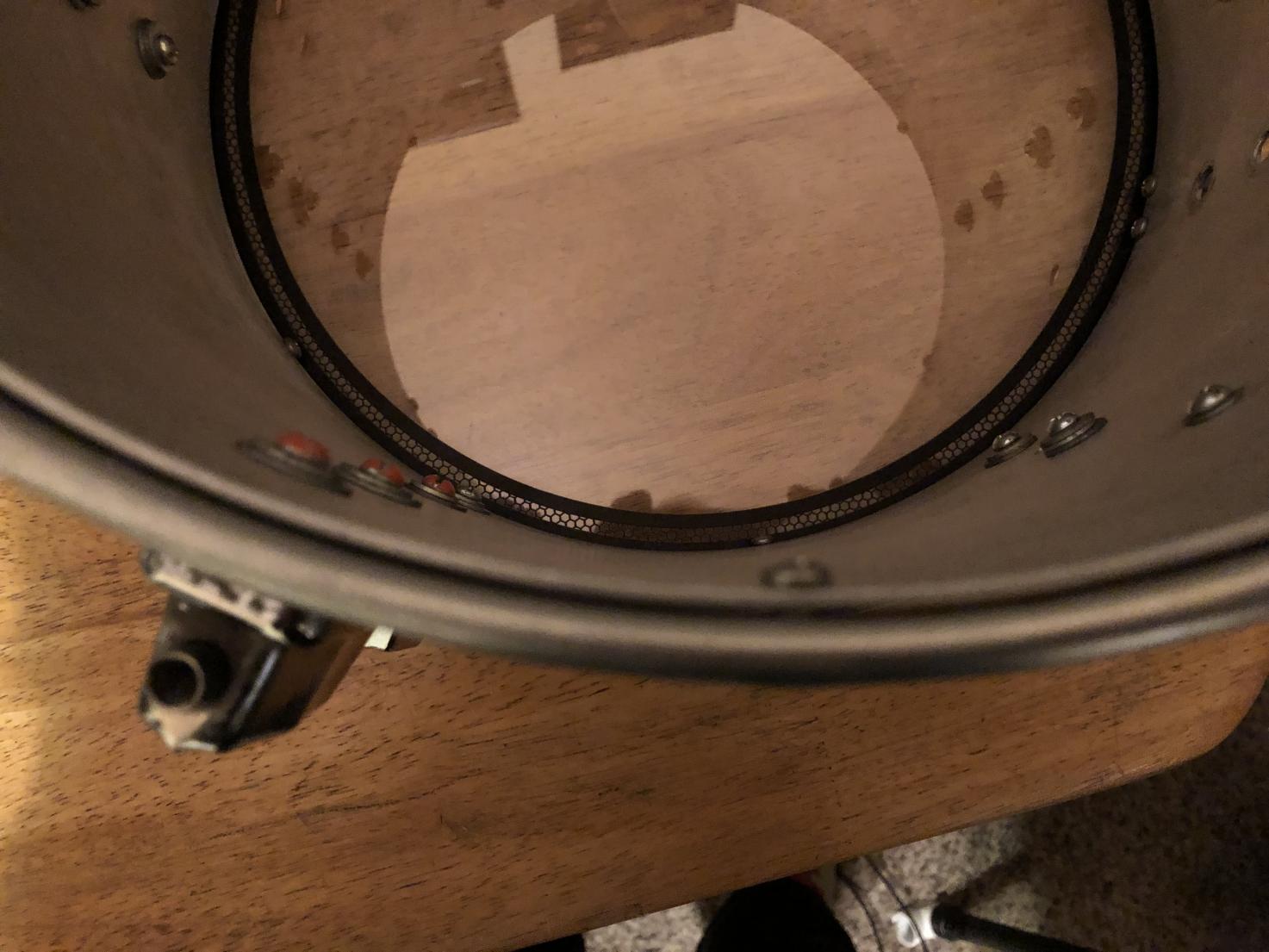

So I now have new/old fashioned round over edges. The round over used on Remo Head Aluminum rims. It tunes much better. for a pot........

2 attachments
BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 1 year ago
#7
Loading...

Amazing! You are truly a creative musician! Years ago, I stumbled upon a make-shift flea market near a river bank in Puerto Vallarta, Mexico. For sale was a snare drum made from a hollowed out log! Modern lugs, rims and t-rods were employed along with fairly good heads (I imagine). I was in no condition to play it at the time, but the seller did and the damned drum sounded good! I wish I'd gone back the next day to examine it more closely!

I was probably up to no good the following day as well!

Brian

Just a drummer who loves all things about vintage drums! Nothing more, nothing less.
Posted on 1 year ago
#8
Loading...

Ahh Mehico......

"Senor.....no triple flam parradiddle today?"

I need some hollowed out log veneer.

BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 1 year ago
#9
