Vntage Slingerland Last viewed: 6 hours ago

Posts: 130 Threads: 31

I have a 9x13 Slingerland tom. It has 6 lugs on top/bottom. It appears to be mahogany. My questions: there are (3) holes near the top that appear to be for the muffler. These holes are horizontal, not vertical (like most 2 hole mufflers). Inside is stamped P-040, nothing else. No badge, no vent hole. does this muffler have (2) felt "rounds", or one? like most other later Slingerlands I've seen. Also, does anyone suppose this may be from the 50s as opposed to the 60s, as I always assumed. Does anyone know what year they started using the horizontal muffler (bracket), and what year they went to the vertical (bracket). Thanks so much for any insight...

Blessings!

Posted on 7 years ago
#1
Guest

Pics? They would help.

Posted on 7 years ago
#2
Posts: 10714 Threads: 579

It's for a radio king style tone control.

Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 7 years ago
#3
Posts: 3467 Threads: 116

Without seeing a pic ? ... But sounds like could easily be 50's..

Cheers

John

1 attachment

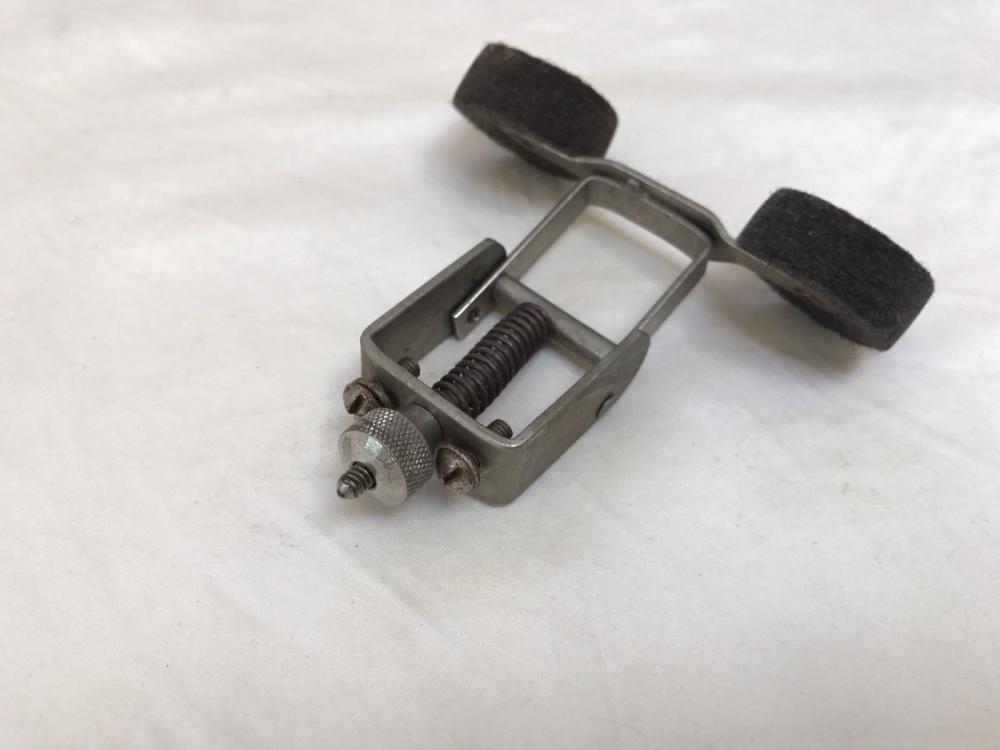

Sling RK muffler.jpg
44.4 kB
'77 Slingerland 51N,Super Rock 24,18,14,13.. COW 8,10 Concert toms
'69 Slingerland Hollywood Ace
'75 Rogers Dynasonic 6.5 x 14, 10 lug COB
'77-78 Slingerland 6.5 x 14, 10 lug COB
'78-79 Slingerland 5 1/4 x14 8 lug COB
'79 Biman 5 1/4, Acrolite
'82 Slingerland 5 1/4 x 14. Festival COS
'84 Tama MasterCraft Superstar 6.5 x 14, 10 lug Rosewood
'98 Slingerland (Music YO) 6" 10 Lug Maple.. NOS
Zildjian, Sabian , UFIP & Paiste mix.
Posted on 7 years ago
#4
Posts: 130 Threads: 31

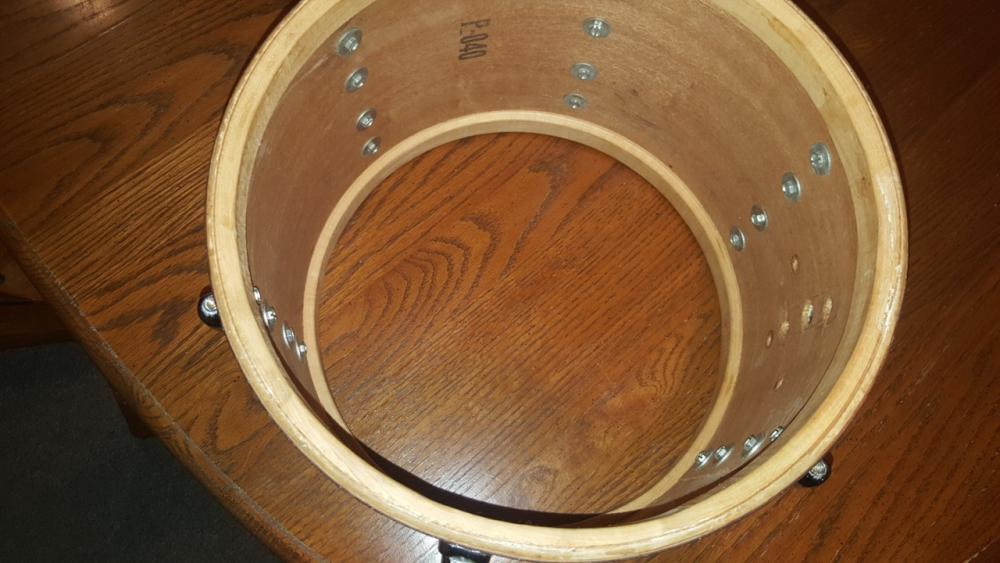

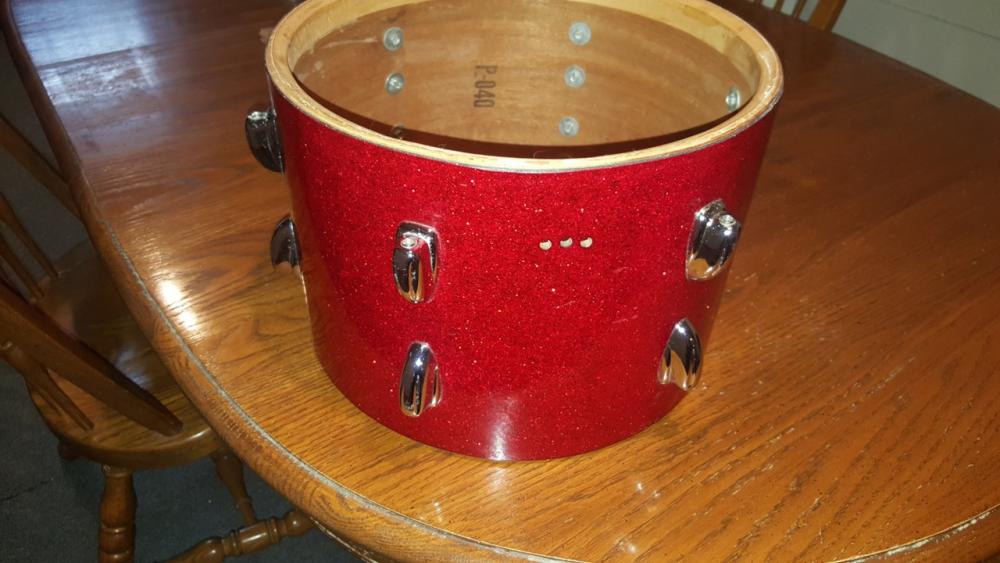

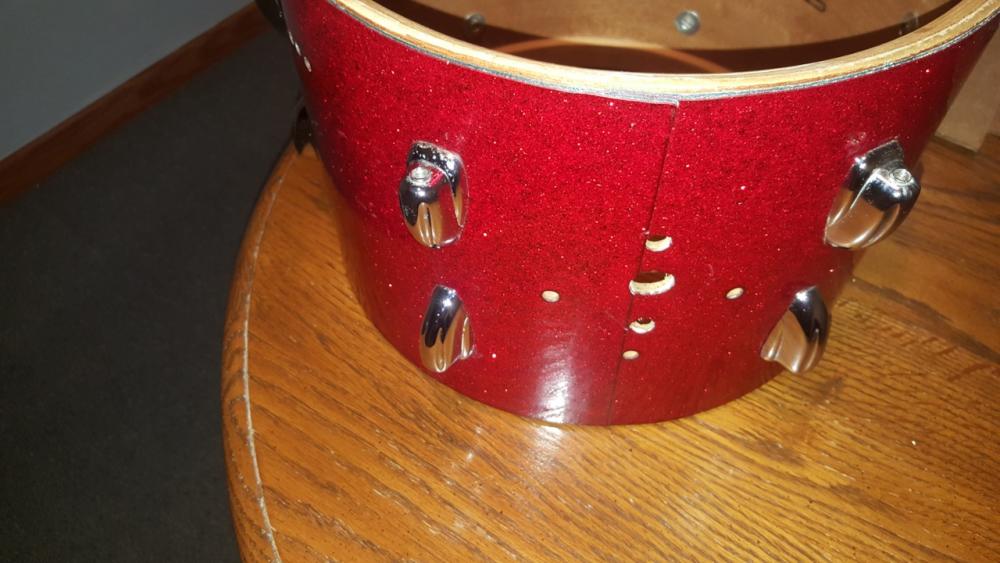

Hi Guys, sorry. Thanks for the responses. I am enclosing 3 pics. the first one shows the (3) horizontal holes where the bracket goes. Any help would be great-did this drum have the double felt mufflers or single?

http://www.vintagedrumforum.com/attachment.php?attachmentid=111944&stc=1&d=1504269293

http://www.vintagedrumforum.com/attachment.php?attachmentid=111945&stc=1&d=1504269293

http://www.vintagedrumforum.com/attachment.php?attachmentid=111946&stc=1&d=1504269293

Posted on 7 years ago
#5
Posts: 1087 Threads: 3

Mahogany interior, narrow re-rings (1-3/8") and wrap seam (overlapped) date this shell to '56-mid '63. Accoording to Dr CJ Wenk 2-pad tone controls were used to the end of '61 and use horizontal mounting holes. Also p-0x0 style shell stamps were used from late '60 and earlier. That narrows your shell down to '56-'60. The fasteners could help narrow the date further except yours are slotted hex head which were not used until '63. Those are probably not original to that shell.

Posted on 7 years ago
#6
Posts: 130 Threads: 31

Thanks so much for the info. Now I can look to find the proper (2 pad) tone controller. I appreciate your help!!

Posted on 7 years ago
#7
Posts: 1132 Threads: 43

From AlloyBoy

Thanks so much for the info. Now I can look to find the proper (2 pad) tone controller. I appreciate your help!!

I have a couple. See the link to my for sale thread here: http://www.vintagedrumforum.com/showthread.php?t=60207.

If you're interested, shoot me a PM.

Lynn

I'm no guru, just a vintage drum junkie!

Psalm 150:5
1945 Slingerland RK sparkling gold pearl 26/13/14/16/early 50s 5.5x14 Krupa RK
1967 Slingerland green glass glitter 20/12/14/Hollywood Ace
60s Slingerland 24/13/16/7x14 project
24/13/16/7x14 project RKs
60s 5 & 6.5 Sound Kings
1942 7x14 WMP Krupa RK
1930s Slingerland Universal
1967 Ludwig Hollywood sparkling blue pearl 22/12/13/16
1967 Ludwig Supraphonic 400 & 402
1965 Ludwig Jazz Fest sparkling blue pearl
1923 Ludwig 5x14 NOB
Posted on 7 years ago
