Gretsch Snare Question

Loading...

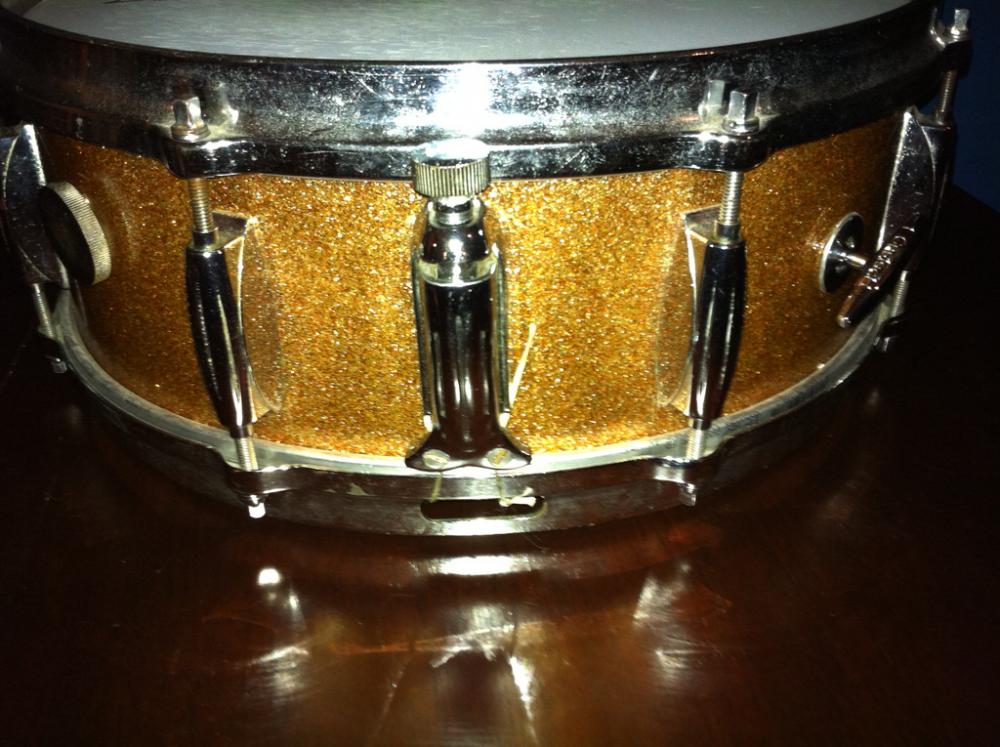

I have a round badge snare with a late 60's replacement throw and need some troubleshooting tips for it. When I throw off the snares then bring them back up, the snare tension is much, much looser. Any ideas on how to fix this? After two times or so, it seems like the snares are almost completely off and I always have to tighten them mid-tune.

My throw looks like this:

[img]https://www.souldrums.com/wp-content/uploads/2013/03/throwoff2.jpg[/img]

1 attachment
Posted on 9 years ago
#1
Loading...

I don't know anything about that throw, but I'll start the ball rolling with the smartass observation that whatever you keep having to tighten is what's getting loose...

If I had to guess I'd start with the strings are they tight enough? But that's probably not it.

...someone will be along to help you shortly...

Mitch

Posted on 9 years ago
#2
Loading...

I appreciate the start. The strings are tight, but the actual nob to tighten or loosen the snares is what I have to keep adjusting (in the second photo).

Posted on 9 years ago
#3
Posts: 2010 Threads: 19
Loading...

That might be the original throw. I think that version of the lightning showed up near the end of the round badge era. I have some drums with the newer version of the lightning (the side throw version didn't last too long, maybe due to the problems you're having) but I have no experience with the earlier version so I'm afraid I can't offer much help. On mine the tension adjustment is all done on the butt side so my guess is either that side is slipping while the tension is off or else your snare cord is slipping and/or stretching in some way...not much help.

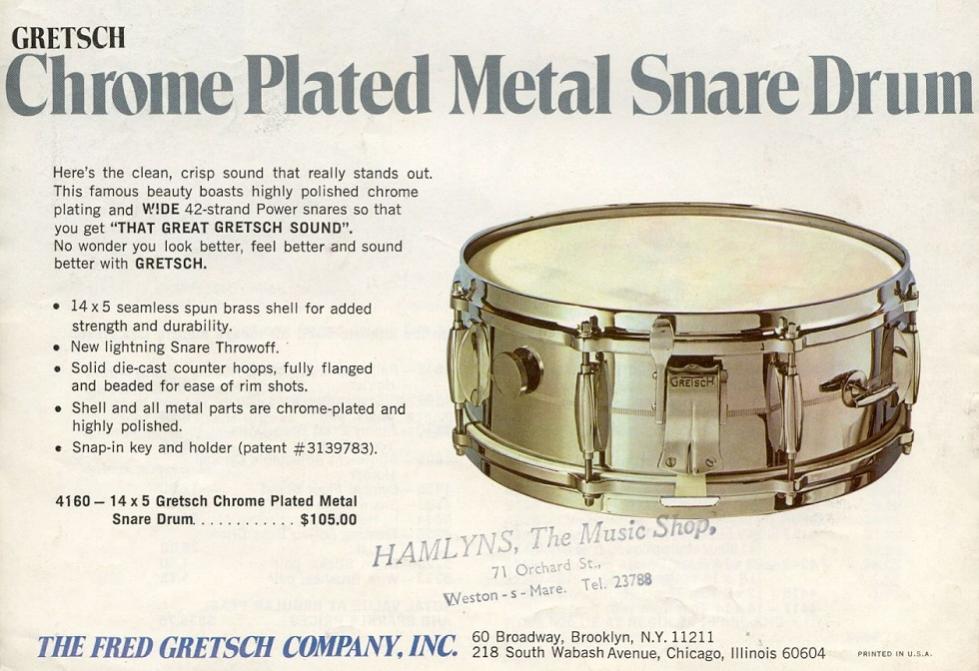

The catalog that first pops up in (1968 still RB era) shows straps holding the snares. Maybe that is a requirement.

1 attachment
95.4 kB
Posted on 9 years ago
#4
Loading...

Never liked that side throw lightning strainer. The center throw is at least a little better.

Sounds like something is coming loose. Check for stripped threads on both sides. The butt strainer should be all the way down when installing, then tighten to desired tension. Check during that process for slippage. Maybe that string is too thin?

Drum Kits
1965 Ludwig Clubdate Oyster Blue
1966 Ludwig Clubdate Oyster Black
1969 Ludwig BB Blue Oyster Keystone Clubdate
1971 Ludwig BB Black Oyster
Early 60's Camco Oaklawns Champagne Sparkle
Posted on 9 years ago
#5
Loading...

Thanks for the feedback, guys. I was playing with snares on and off and noticed something today. When the snares are off, and I play the snare, the tension knob turns counterclockwise--on its own--as if I was loosening it. Obviously the stick-on-head vibration is causing this, but any ideas what could be causing the knob to turn on its own and loosen?

Posted on 9 years ago
#6
Loading...

The sonic vibrations are doing it. Can you back the adjustment knob completely out of the strainer? If you're able to take some Teflon tape apply it the threads it will add some resistance to the knob, you'll need to experiment to see how thick you can go with it. http://www.sears.com/freeman-teflon-tape/p-00905026000P?sid=IDx01192011x000001&gclid=CLvH2ryiosoCFYwvgQodcccMMA

Your drummers not much good is he!? What you need is someone that's as good as me. ! John Henry Bonham !!
Posted on 9 years ago
#7
Loading...

From vintagemore2000

The sonic vibrations are doing it. Can you back the adjustment knob completely out of the strainer? If you're able to take some Teflon tape apply it the threads it will add some resistance to the knob, you'll need to experiment to see how thick you can go with it. http://www.sears.com/freeman-teflon-tape/p-00905026000P?sid=IDx01192011x000001&gclid=CLvH2ryiosoCFYwvgQodcccMMA

So pull the adjustment knob completely out and add teflon tape to it to secure it further, so there isn't any play? I took the strainer apart today to see if everything was okay internally, and it was. Where should I put the tape, and how much do I use? Obviously this is a defect/problem. Any idea why the vibration is causing this trouble? There has to be some faulty piece I could fix/replace.

Posted on 9 years ago
#8
Loading...

I tightened the knob more to the shell, but that didn't help. Any thoughts? Besides taping the knob so it's immovable--and thus not functional--I'm not sure what else to do.

Posted on 9 years ago
#9
Posts: 2010 Threads: 19
Loading...

If done right the Teflon tape shouldn't make the knob immovable. The tape is very thin and will go down into the threads. Actually teflon is usually used to make things more slippery but a slight increase in the size of the threads should make them less likely to turn on their own.

Posted on 9 years ago
