asba bass drum pedal - beater holder part Last viewed: 3 days ago

Posts: 170 Threads: 110

Hi -

I have an almost complete ASBA caroline BD pedal - just need the little part that holes the beater onto the pedal (looks like an eyelet that tightens)

anyone have this part or know a source???

Thanks!

-Jon / [email]jds622@gmail.com[/email]

Posted on 12 years ago
#1
Posts: 5295 Threads: 226

VDF member Dule had some Asba stuff for sale awhile ago...Maybe he could help...Great gent to deal with too...Shoot him a pm...

Cheers

1976 Ludwig Mach 4 Thermogloss 26-18-14-14sn
1978 Ludwig Stainless 22-22-18-16-14-13-12 c/w 6-8-10-12-13-14-15-16-18-20-22-24 concert toms
1975 Sonor Phonic Centennials Metallic Pewter 22-16-13-12-14sn (D506)
1971 Ludwig Classic Bowling Ball OBP 22-16-14-13
1960's Stewart Peacock Pearl 20-16-12-14sn
1980`s Ludwig Coliseum Piano Black 8x14 snare
1973 Rogers Superten 5x14 & 6.5x14 COS snares
1970`s John Grey Capri Aquamarine Sparkle 5x14 snare
1941 Ludwig & Ludwig Super 8x14 snare
Posted on 12 years ago
#2
Posts: 1867 Threads: 179

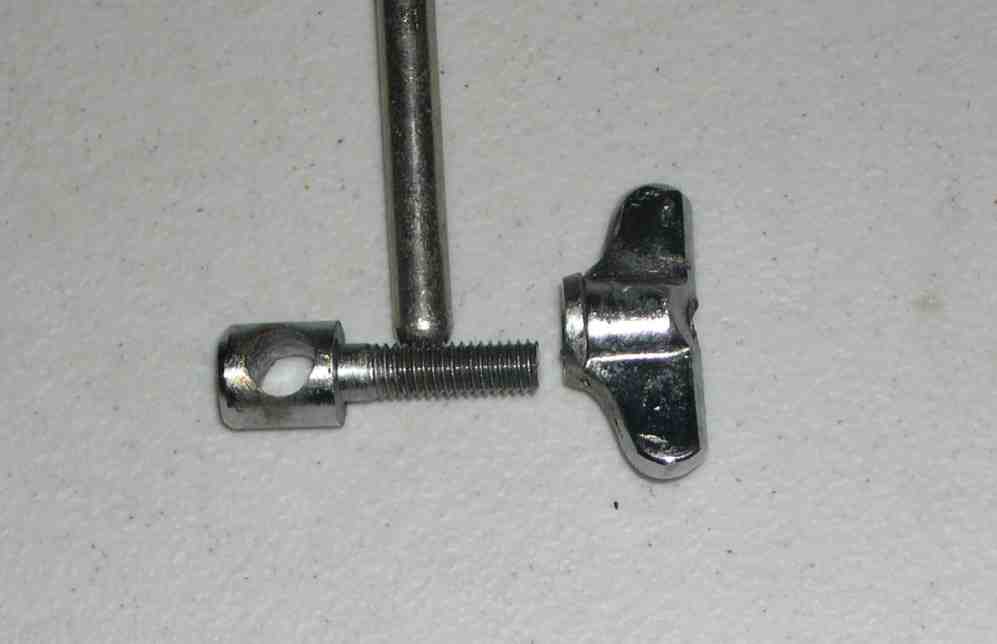

I have an Asba. Took this pic in case you don't have any reference.

Diameter of Fat end is approx 7/16"

Length of Fat (with the hole in it) part is approx 1/2 " and that is one you got to match so it tightens into bracket. Approx 1/2 ".

Threaded rod is approx 3/16" diameter and is approx 13/16 in length.

Hole for beater rod is approx 1/4".

Of course the original parts are probably all metric, but these sizes should work.

Threaded shaft is 6 MM 1.0 Pitch. I checked it at OSH.

You could make one out of a steel joiner clip OSH. (steel dowell with a threaded hole in center)

1/2" by 3/8" or 1/2" long. The hole is threaded but you could drill it out if you need to.

Drill and Tap the end of clip with 6MM 1.0 thread. Cut off a 6MM 1.0 bolt and thread in.

Test length of dowell and grind off until Beater rod fits snugly. Taking the threaded bolt out each time you have to shave the dowel.

sa

sa

1 attachment
Asba Beater Bolt.jpg
23.5 kB
BLAEMIRE DRUMS
Thanks to Mr. Jerry Jenkins
Posted on 12 years ago
#3
Posts: 5227 Threads: 555

I have them in stock about 100 or so of these in all size's. I can check and see what i have....Mikey

Posted on 12 years ago
#4
Posts: 7 Threads: 2

I have an Asba pedal with the part you want, but other parts are missing. I gave up trying to put it together because I've been happy playing my old dw. Between the two of us we have a complete Asba pedal. If you are interested, I'll take a photo and post it. Let me know!

PaulSdrums

Posted on 12 years ago
